CellProfiler & Ilastik: Superpowered Segmentation

January 19, 2017

Kyle Karhohs

Joining forces

CellProfiler is capable of accurate and reliable segmentation of cells by utilizing a broad collection of classical image processing methods. Peruse the documentation on the IdentifyPrimaryObjects module, for example, to get a sense of these, e.g., thresholding, declumping, and watershed. However, despite the many problems CellProfiler can readily solve, certain types of images are particularly challenging. For instance, when the biologically relevant objects are defined more by texture and context than raw intensity many classical image processing techiques can be foiled; DIC images of cells are a common biological example.

Thankfully, machine learning, particularly pixel-based classification has yielded powerful techniques that can often solve these challenging cases. ilastik is an open-source tool built for pixel-based classification, and, when combined with CellProfiler, the range of biology that can be quantified from images is greatly expanded beyond monocultures of monolayers to include increased complexity such as tissues, organoids, or co-cultures.

Now, let’s take a look at how ilastik can be used together with CellProfiler!

DIC conundrum

Consider segmenting DIC images, such as those within the imageset BBBC030. The goal will be to identify individual Chinese Hamster Ovary (CHO) cells and the regions they occupy.

A straightforward thresholding of this image yields poor results, because the cells have almost the same pixel intensity values (and sometimes even darker!) as the background. There is therefore no true foreground for these cells based solely upon an intensity histogram. Thresholding renders the CHO cells into moon-like crescents. While these fragments could be useful for simple cell counting, most metrics of morphology will be inaccurate. Now, note that there is a module, EnhanceOrSuppressFeatures, that is specifically capable of transforming DIC images into something that is readily segmented. But let’s pretend for a moment we didn’t have that option…

Pixel-based classification with ilastik

ilastik employs pixel-based classification and complements CellProfiler. The CHO cells within the DIC image are obvious to the human eye, because we can discern that each cell is defined by a characteristic combination of light and dark patterns. These same patterns can be detected with the machine-learning algorithms within ilastik.

The machine-learning implemented by ilastik requires user annotation about what is background and what is a CHO cell before it can automatically make this determination across a set of images. ilastik provides a user interface for labeling, tagging, and identifying the objects of interest within an image. This annotation creates what is referred to in machine learning as a training set.

Annotation with 2 Labels

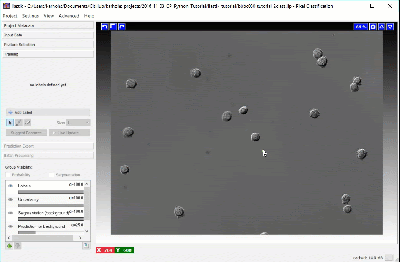

Open ilastik, load an image, and seek out a cell that looks representative of the population. Some shortcuts that may prove useful are:

  • Ctrl + mouse-wheel = zoom.
  • The keyboard shortcut Ctrl-D will show the grid Ilastik uses to partition the image for processing.
  • Zoom-in far enough that the grid is no longer visible. This will speed up the Live Update.

We will begin here by labeling pixels for two classes: a background class and a CHO cell class. We recommend creating labels for each class one pixel at a time, rather than by making scribbles, to minimize the chance of over-fitting, i.e. too much information about any given area can cause classification to do poorly in other slightly-dissimilar areas. To label one pixel at a time, we’ll need to zoom in far enough to resolve the individual pixels in the image. The image below shows how closely we must view individual cells before the pixels of the image become clear.

Using a brush size of 1, we click a single pixel from each class: one within a single CHO cell and the other in the surrounding background. In the next image, the annotation color of the CHO cell is yellow and the annotation color of the background is green. Activating Live Update reveals the segmentation looks similar to the results from thresholding. This outcome is promising considering this classification was determined by 1 feature and 1 pixel each for the CHO and background labels.

Adding more labels, one pixel at a time, we continue to refine the segmentation. Toggling the Segmentation and Uncertainty views provides real-time feedback that can guide the labeling process. Areas of high uncertainty will be aqua-blue, so annotating those areas will be most beneficial to training the program which pixels belong to which class. You should also view the predicted segmentation, and annotate pixels that are not currently segmented properly.

Continue until it seems that additional labels do not change the results, or a subset of the pixels begin “flipping” between CHO cell and background. Check and label other cells in the image, as well as in other images, to make sure the diversity in your experiment is represented in the training set. When satisfied with the results, export the probability maps, which in this case are the output and final step of pixel-based classification.

Segmenting probabilities with CellProfiler

The probability map images created with ilastik can then be processed by CellProfiler to identify and measure the CHO objects within the DIC images. The probability map images are grayscale images and can be treated as if they were the result of a “stain” for the cells.  In other words, we have transformed the patterns and texture of intensity in the DIC image into an image where the intensity reflects the likelihood that a given pixel belongs to a cell. The image below demonstrates how the IdentifyPrimaryObjects module successfully segments all the CHO cells.

Final thoughts

ilastik and CellProfiler can be used together to create an easy-to-use workflow that takes challenging images and quantifies the biology contained within. Note that the actual logistics of using CellProfiler and ilastik together are in flux; more details here: https://github.com/CellProfiler/CellProfiler/wiki/How-to-use-Pixel-Class...

ilastik isn’t the only tool that plays well with CellProfiler. Many other pieces of software can be combined with CellProfiler, too; check out our listing of software partnerships. Taking a modular approach to developing a workflow can lead to flexible, approachable, and potent solutions to quantifying biological images.
